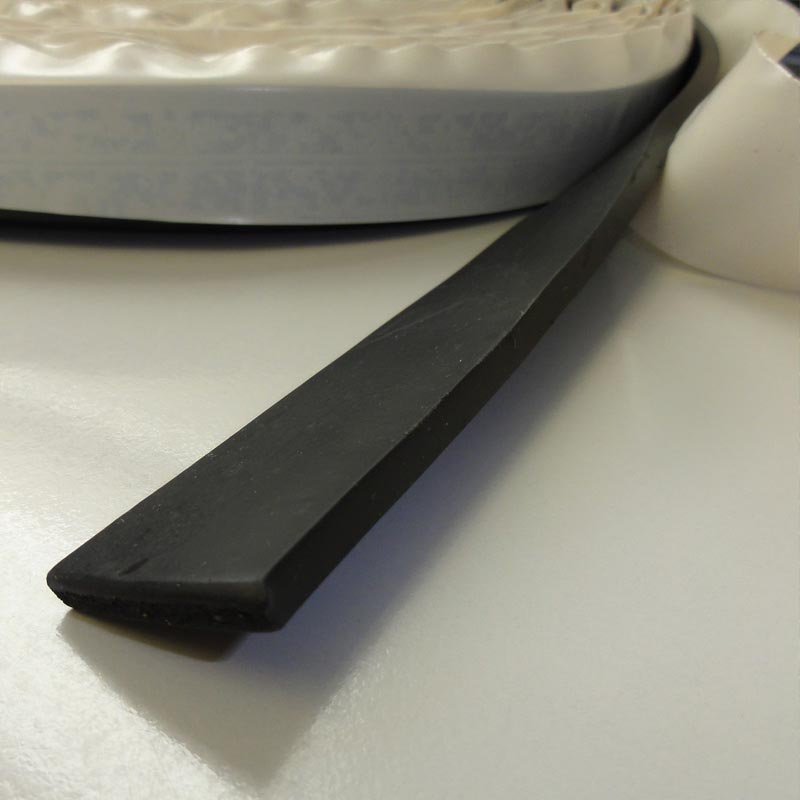

FUGA-STOP MINI 20 x 10 mm

Hydro-expansive bead for the safe sealing of cold or concrete joints in swimming pools, tanks, ponds and structures in general.

  • Modified bentonite joint
  • Highly effective leak prevention
  • Maximum safety.
  • Minimum cost.
  • Does not react to moisture in the concrete during formwork.
  • It expands when it receives water directly from somewhere and acts only in the area where the water comes from, sealing the crack.
  • It offers maximum precision compared to other types of joints that react to water only once, with no differentiation as regards the affected area whatsoever.
  • MASTIC MS is the ideal adhesive to perfectly secure the FUGA-STOP 20×10 mm.

Eco Design
Eco Fixcer

All Fixcer products are environmentally friendly. Fixcer manufactures with sustainable construction parameters and complies with the EN14.001 standard to reduce environmental impact.

Eco Fixcer
View Vídeo
Technical Data Sheet
Safety Data Sheet
Declaration of Performance
Chemical Resistance

All Fixcer products are environmentally friendly. Fixcer manufactures with sustainable construction parameters and complies with the EN14.001 standard to reduce environmental impact.

Eco Fixcer
Eco Fixcer

FIELDS OF APPLICATION

  • In construction, working joints pose a risk of water seepage. The use of this hydro-expansive bead ensures that if water seeps through one of these joints, it will eventually reach the FUGA-STOP MINI and the latter will expand, preventing the progressive advance of the water.
  • It is suitable for construction joints, cold joints, diaphragm walls, concrete joints, etc.

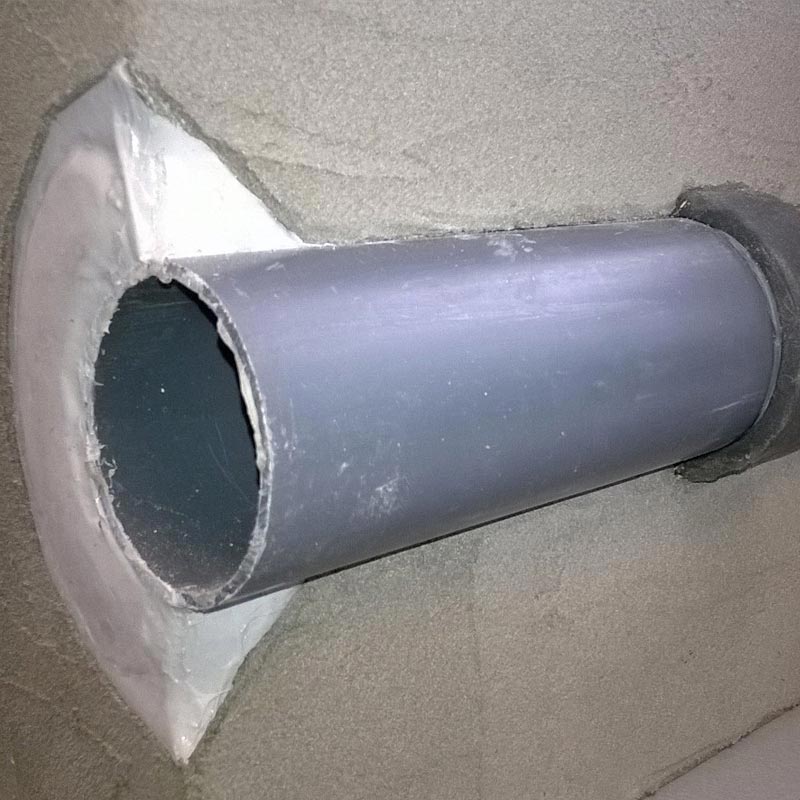

    It can also be applied to pipe penetrations, to avoid the always foreseeable leaks between PVC and concrete joints, or in steel-concrete joints.
  • Applicable both vertically and horizontally.
  • It is fully effective in water treatment plants, car parks, drinking water tanks, SWIMMING POOLS, underground works, sewage plants, and in general in all works with very high water pressures.
  • It is ideal for delicate joints in tunnels, ditches, galleries, dykes and waterworks.
  • It can be applied on concrete containing chemically aggressive products or seawater.

HOW IS IT APPLIED?

Before applying FUGA-STOP MINI 20×10 mm we recommend as follows:

  • All contact substrates must be fully cured, resistant and solid, as well as free of dust, paint, waxes, oils and grease at all times.

Basic application of FUGA-STOP MINI 20×10 mm

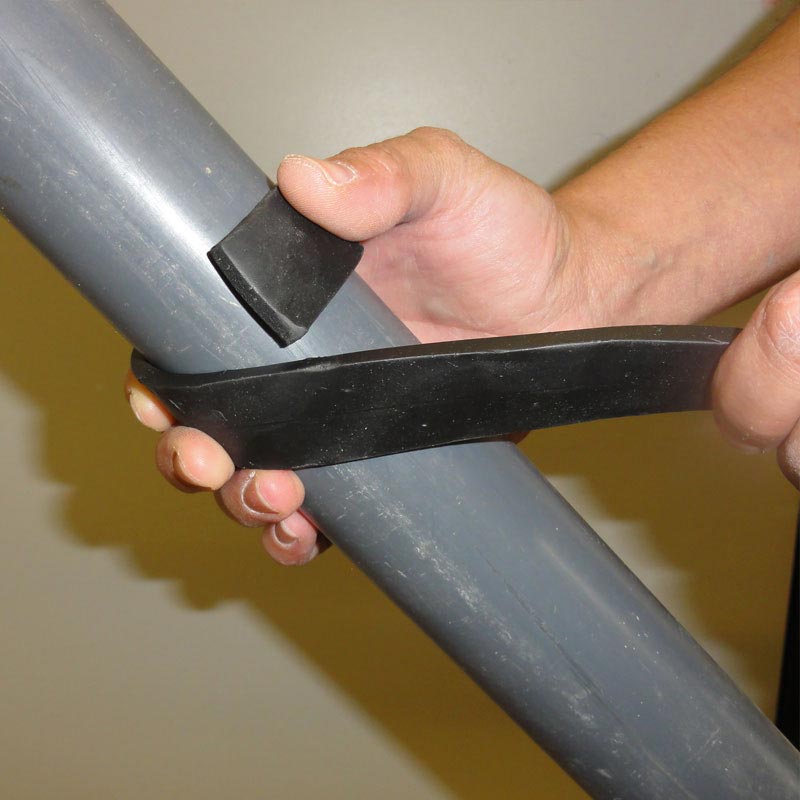

  • Place the FUGA-STOP MINI as a ring around the pipe towards the middle of the wall.
  • Glue the FUGA-STOP MINI with the special MASTIC MS glue
  • Ensure that there is a minimum concrete thickness of 4 cm around the FUGA-STOP MINI.
  • Download the FUGA-STOP MINI Data Sheet to check all the technical details and ensure correct, safe application.

HOW IS IT RECYCLED?

  • Use cardboard and paper recycling bins to dispose of unusable and empty sacks.
  • Use plastic recycling bins for unusable and empty plastic packaging.
  • Mortar residues and leftover building materials must be disposed of at the appropriate green point or recycling location for your district.
